How to Build a USBTiny ISP Programmer

Did you think about how to build a USBTiny ISP Programmer on your own?

Doing electronics projects is so exciting and fun for us, makers. But most makers and hardware enthusiasts who are just stepping ahead to the maker culture built their projects with development boards, breadboards, and modules. This way, we can build the rapid prototype version of our project. But it shall be bulk in size and messed with breadboard wirings. Similar case while using a Generic PCB board, it also looks messy and unprofessional!

So, how we can build our projects in a more convenient way?

The best way to use Standalone PCBs for our project!

Designing and manufacturing a PCB for our project is a better and convenient way to express your professionalism and expertise!. We can minimize the size of our project into a compatible size and custom shapes, PCBs are looking neat and sturdy connections are some of the advantages.

So, what matters is, how we build a PCB cost-effective and time-effective?

We can send our design to a PCB manufacturer to manufacture our PCB design, but it should be time taking and blew your pocket. Another method is to do a toner transfer method using a laser printer and photo paper. But its also time taking and test your level of patience and you also need a permanent marker to patch the non-etched parts. I used this method a lot of time and I hate it.

So, what is the best way?

In my case, The best way to use CNC milling machines to build your PCB. PCB milling machines give you good quality PCB and it takes less time, less resource and cheapest way to produce PCB prototypes!

But it just my own view, The way of method will vary person to person and where you live and accessible resources.

So, let’s build a USBtiny ISP programmer by utilizing a CNC milling machine!

Without further due, let’s get started!

Step 1: You Don’t Want to Be Rich!

Really! you don’t want to purchase a PCB milling machine. Most of us don’t have the budget to buy an expensive machine like this. I don’t even have one.

So, how I got access to a machine? Simply, I just go to a fablab, makerspace or a hackerspace in my locality! In my case, I just go to a fablab and use the machine for a cheap price. So, find a place like fablab or a makerspace in your locality. For me, the price is 48¢/hour for using the PCB milling machine. The price may vary in your locality. So, like I said you don’t want to be rich!

Step 2: Bill of Materials

Components list

  • Attiny 45/85 microcontroller (SOIC package)
  • 499 Ohms x 2
  • 49 Ohms x 2
  • 1K x 2
  • 2 x 3.3 Zener diode
  • 0.1mf capacitor
  • Blue led
  • Green led
  • 2×3 Male header pins (SMD)
  • 20cm 6wire Ribbon cable
  • 2 x 2×3 Female Header IDC Ribbon Cable Transition Connector
  • 4cm x 8cm FR4 Copper Clad

Please note: (Resistors, capacitors, diodes and led are used in this projects is 1206 package)

Tools requirements

  • Soldering station or soldering iron (Micro-tip)
  • Soldering Lead wire
  • Tweezer (microtip)
  • Desoldering Wick
  • Third-hand tool
  • Multimeter
  • Wire Stripper
  • Fume Extractor (Optional)

Machines Requirement

  • Modela MDX20 (Any PCB milling machine do the job, but the job control software will change)

Download the resources for this project!

Step 3: What Is a PCB Milling Machine?

1 / 3

PCB milling machine is a CNC (Computer Numerical Control) machine that used to fabricate PCB prototypes. PCB milling machines are mill away the copper parts of the copper-clad to make out traces and pads of the PCB. The PCB milling machine comes with a three-axis mechanical movement (X, Y, Z). Each axis is controlled by a stepper motor for precisional movements. These axis movements are controlled by a computer program by giving G-code commands. Gcode is widely using Numerical control programming languages, most of the machines are using g-code to control the axis of the machines. A tool head (usually a milling bit) is connected to these axes that will mill out the PCBs.

:- The machine I am using is a MODELA MDX20 CNC milling machine.

The Modela MDX 20 PCB Milling Machine

The Modela MDX20 is a PCB milling machine. Modela MDX20 is usually used to fabricate PCBs but we can also make moldings, etchings, etc… Modela can mill on different materials like Plywood, Wax, Acrylic, Differents PCB materials like Fr1 Fr4, etc… The modela is lightweight and comes with small in size. We can place it on even a small desktop. The bed (milling surface) is attached to Y-axis and the tool head is attached to X and Z. That means the movement of the bed is controlled by the Y-axis and the movement of the tool head is controlled by X-axis and the tool head is controlled by Z-axis. Modela has its own computer program. But I am using a Linux program called FABModules. FABmodules communicate with Modela to control the cutting and milling process. Fab Modules never set X, Y, Z axis automatically, we need to set them manually.

General Specification

  • Workspace : 203.2 x 152.4 mm
  • Z-axis stroke: 60.5mm
  • Spindle speed: 6500RPM

 Milling Bits To use

  • Milling Bit: 1/64 inch (0.4 mm) bit
  • Cutting Bit: 1/32 inch (0.8 mm) bit

Step 5: What is the ISP (In-System – Programmer)?

In System Programmer (ISP) also known as In-Circuit Serial Programmer (ICSP) is a microcontroller programmer. The ISP will read the instructions and commands from the computer USB and send it to the Microcontroller through the serial peripheral interface (SPI). Simply ISP devices allow us to communicate with the microcontroller using SPI lines. SPI is the way of communication in the microcontroller. Every connected peripherals and interface communicate with microcontrollers through SPI. As an electronics enthusiast, the first thing that comes to my mind when say about ISP is MISO, MOSI SCK. These three pins are the important pins.

Simply, ISP is used to burn programs to the microcontroller and also used to communicate with your microcontroller!


USBTiny ISP is a simple open-source USB AVR programmer and SPI interface. It is a low cost, easy to make, works great with avrdude, is AVRStudio-compatible and tested under Windows, Linux and macOS X. Perfect for students and beginners, or as a backup programmer.

All the components are used in this project’s SMD Components. The brain of the USBTinyISP is an Attiny45 microcontroller.

ATtiny 45 Microcontroller

The microcontroller that is using in USBTinyISP is Attiny 45. Attiny45 is a High performance and low power 8- bit AVR microcontroller running on RISC Architecture by Atmel (microchip acquired Atmel recently). Attiny 45 comes in an 8 pin package. Attiny 45 has 6 I/O pins, Three of them are ADC pins (10 bit ADC) and the other two are Digital pins supporting PWM. It comes with a 4KM flash memory, 256 In-System Programmable EEPROM and 256B SRAM.

Operating voltage around 1.8V to 5.5v 300mA. Attiny 45 support Universal Serial Interface. Both SMD version and THT versions are available in the market. Attiny 85 is a higher version of Attiny 45, They are almost the same. The only difference is in the Flash memory, Attiny 45 have 4KB flash and Attiny 85 have 8KB flash. We can choose either Attiny 45 or Attiny 85, Not a big deal but Attiny 45 is more enough to make FabTinyISP. See the official documentation from here.

  • ATtiny 45 : 4KB FLASH /256 B EEPROM / 256 B SRAM
  • ATtiny 85 : 8KB FLASH / 512B EEPROM / 512 B SRAM

Special Features:-
  • debugWIRE On-chip Debug System
  • In-System Programmable via SPI Port
  • External and Internal Interrupt Sources
  • Low Power Idle, ADC Noise Reduction, and Power-down Modes
  • Enhanced Power-on Reset Circuit
  • Programmable Brown-out Detection Circuit
  • Internal Calibrated Oscillator

Step 7: Setup the Machine

Now let us Build the PCB using the PCB milling machine. I included the Trace layout and Cut layout in the zip file, you can download the zip file from below.

Prerequestment: Please download and install the Fabmodules from this link

Fabmodules only supported in Linux machines, I am using Ubuntu!

Step1: Sacrificial Layer

First of all, the work plate of the PCB milling machine (AKA milling bed) is a metal plate. It is sturdy and well builds. But in some cases, it may damage while cutting in over depth by mistake. So, I place a sacrificial layer on top of the milling bed (a copper-clad placed on top of the milling bed to avoid touching bits in the metal plate).

Step 2: Fix the 1/62 milling bit in the tool head

After placing the sacrificial layer, Now I need to fix the milling bit (usually used a 1/62 milling bit) in the tool head. I already explained the two-stage process of milling PCBs. For milling the traces and pads of the PCB, use a 1/64 milling bit and place it on the tool head using the Allen key. While changing the bits, always give extra care for the bits. The bit’s tip is so thin, It has more chances to break the bit while slip from our hands even it is a small fall. to overcome this situation, I placed a small piece of foam under the tool head to protect from accidental falls.

Step 3: Clean the copper-clad

I am using an FR1 copper clad for this project. The FR-1 is heat resistant and more durable. But copper clads will oxidize quickly. Coppers are fingerprint magnets. So before using a copper-clad even, it is a new one, I recommend you to clean the PCB with a PCB cleaner or acetone before and after milling the PCB. I used a PCB cleaner to clean the PCB.

Step 4: Fix the Copper clad on the milling pad

After cleaning the copper clad, place the copper clad on the top of the milling bed. I placed the copper clad on the milling pad with the help of double-sided sticky tape. The double-sided sticky tapes are so easy to remove and they are available for a cheap price. I stick the double-sided tape on the top of the sacrificial layer. Then placed the copper clad on the top of the sticky tape.

Step 8: Setup Fab Modules and Milling Process

Step 1: Power the machine and Load FabModules

powered on the machine and then open the Fab module software in a Linux system (I’m using Ubuntu) by typing the below command in the Linux terminal.


Then a new window will pop up. Select image(.png) as input file format and output format as Roland MDX-20 mill(rml). After that, click the Make_png_rml button.

 Step 2: Load the PCB design Image

At the top of the new window select the bit that you are going to use. then load your .png format by clink Load.png button. Then click on Make.path button to generate the path to for mill. Now click the Make.rml to generate the instructions and commands for the machine. A new Send it Button will appear on the top make the Make.rml button. Do not click on the button right now.

Step 3: Set X, Y & Z Axes

We are not done yet. Now press the View button on the Modela MDX20 control panel. make sure the bit is well tight. press once more the view button to get back to the default position. Now set the X, Y positions by entering the measurements (depends on your board position) in desired text boxes. I recommend you to note down the X & Y positions somewhere. If something went wrong and you need to start from first, You should need the exact X&Y positions to continue your milling process else it will mess up.

Bring down the tool head by pressing the Down button. Stop when the Tool head reaches near to the copper clad. Then lose the tool head screw and bring down the bit a little bit down until it touches the copper layer of the copper clad. Then tighten the screw back again and bring back the tool head to the home position by pressing the View button. Now we all set. Close the safety Lid of the Modela and click Send it button. The modela will start the milling process.

It shall take a minimum of 10 to 13 minutes to mill the traces and pads. After finishing the milling I got a good result.

Step 4: Milling Tracesand Pads & Cutting the Outline layout

After finishing the Trace milling, Cut out the PCB outline layout(simply shape of the PCB). The process is almost the same. For cutting the layout, Change the 1/64 bit to 1/32 bit in tool head. Then load the cutting layout .png file to fab modules and select the cutting bit(1/32) in the tools menu. Then continue the same procedures that I did earlier. Take out the completed PCB from the bed.

Step 9: Finished PCB

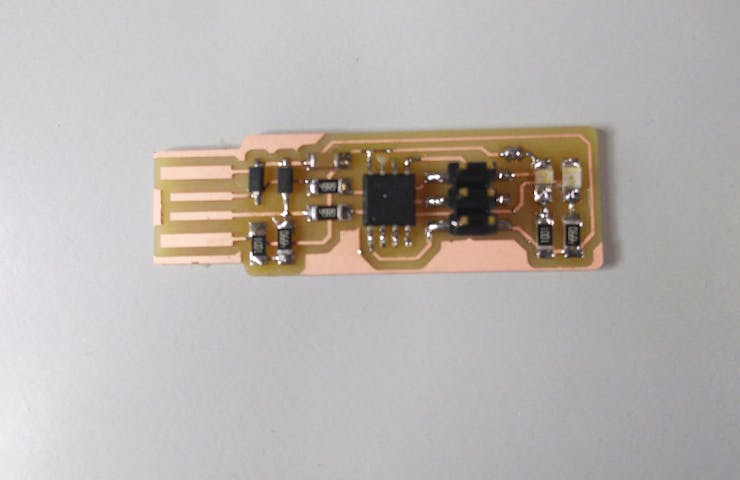

I successfully milled my FabTisnyISP PCB using Modela MDX20. I carefully removed the copper clad from the sacrificial layer and cleaned the specks of dust in milling bed using a dust buster. Then I cleaned the PCB one again using the PCB cleaner.

Step 10: Soldering the Components on PCB

ow I have a finished PCB. all I need to do is solder the components on the PCB. For me, it is a fun and easy task.

When it comes to soldering, Through-hole components are so easy to solder when comparing with SMD components. SMD components are small in their footprints. it is a little bit difficult to solder for beginners. There are a lot of chances to make mistakes like cold solders misplacements of components and the most common thing or make bridges in between traces and pads. But everyone has their own soldering tips and tricks, that they were learned from their own experiences. this will make this task fun and easy. So take your time to solder the components!

Here How I Do Soldering!

I usually solder Microcontrollers and Other ICs first. Then I solder small components like resistors and capacitors etc…

At last through-hole components, wires and header pins. To solder my USBTinyISP, I follow the same steps. To solder SMDs easily, First, I heat up the soldering iron to a 350°C. Then add some solder flux on pads. Then heat up the pad which I want to solder the components, then I add a little amount of solder to a single pad of the component pad.

Using tweezers, pluck the component and place on the pad and heat up the pad for 2-4 second. After that, solder the remaining pads. If you make bridges between pins and traces or gives a lot of solder to a component, used the solder wick ribbon to remove the unwanted solder. I continue the same steps until the PCB fully soldered without any problem. If something went wrong, first I carefully check all traces and components having breaks or bridges using a magnifier and multimeter. If I found, then I rectify it!

Step 11: Making the ISP Cable

To connect the microcontroller or another ISP programmer to flash the firmware. we need a six-line ribon wire with two 2×3 female wire connector. I used a 4/3 feet 6 channel ribbon wire and carefully connected the female header on both sides. To do nicely I used a G clamp. see the picture.

Step 12: Flashing Firmware

1 / 2

Now we can flash the firmware to our ISP. To do that we need another ISP programmer. I used another USBTinyISP, But you can use an Arduino as ISP to do this task. Connect both the ISPs using the ISP connector that we previously made. Then connect USBinyISP(The one we are using for programming) to the computer. Make sure the ISP is detected in your system by typing the below command in the Linux terminal.


Step 1: Install AVR GCC toolchain

First of all, we need to install the toolchain. To do that, open a Linux terminal and type.

sudo apt-get install avrdude gcc-avr avr-libc make

Step 2: Download and unzip the firmware

Now download and unzip the firmware files. You can download it from here. After downloading the zip file, extract into a good location that you can find easily (to avoid unnecessary confusion).

Step 3: Make file

Before burning the firmware. we need to ensure the makefile is configured for the Attiny microcontrollers. To do this open the Makefile in any text editor. then confirm MCU = Attiny45. See the image below.

Step 4: Flash the firmware

Now we can flash the firmware to our ISP. To do that we need another ISP programmer, as I said earlier. I used a FabTinyISP, that I made earlier. But you can use any ISP or use an Arduino as an ISP programmer. Connect both the ISPs using the ISP connector that I previously made. Then connect FabTinyISP (the one I using to program my ISP) to the computer. Make sure the Isp is detected in your system by typing the below command in the Linux terminal.


Now we are ready to flash. Open the terminal in the folder path of the firmware located and type “make” to make the .hex file. This will generate a .hex file that we need to burn into the Attiny 45.

Type the below command in the Linux terminal to flash the firmware to the microcontroller.

make flash

Step 5: Enabling Fusebit

That’s it we are done flashing the firmware. But we need to activate the fuse. Just type in

 make fuse

the terminal to activate internal fuse.

Now we need to either remove the jumper or disable the reset pin. Removing the jumper connection is not mandatory, we can disable the reset pin. It is up to you. I choose to disable the reset pin.

Please note:- If you disable the reset pin, then the Reset pin will be disconnected internally. Means you can’t program it anymore after disabling the reset pin.

If you want to disable the reset pin, then type make the below command in terminal.


You will get a success message. After uploading the firmware successfully i need to check the USBTinyISP is working correctly, to do that you need to enter a command in terminal

 sudo avrdude -c usbtiny -b9600 -p t45 -v

After entering the command, you will get the return feedback in the terminal window.

Step 13: We Are Done
